| Specifications |
Details |
| Number of Milling Head |
Vertical & Horizontal |
| Type of Main Centre |
Universal |
| Number of Axis |
7 Axis
- B – Rotating Horizontal holder (360 Degree)
- Z – Cutting Depth for Jobs
- X – Longitude for Centering Jobs
- Y –Latitude for Centering Jobs
- H – Horizontal Tool Servo
- V– Vertical Tool Motor (with Pneumatic Tool Changing)
- C – Automatic Tool Changing Turret With 7 Tool Change
|

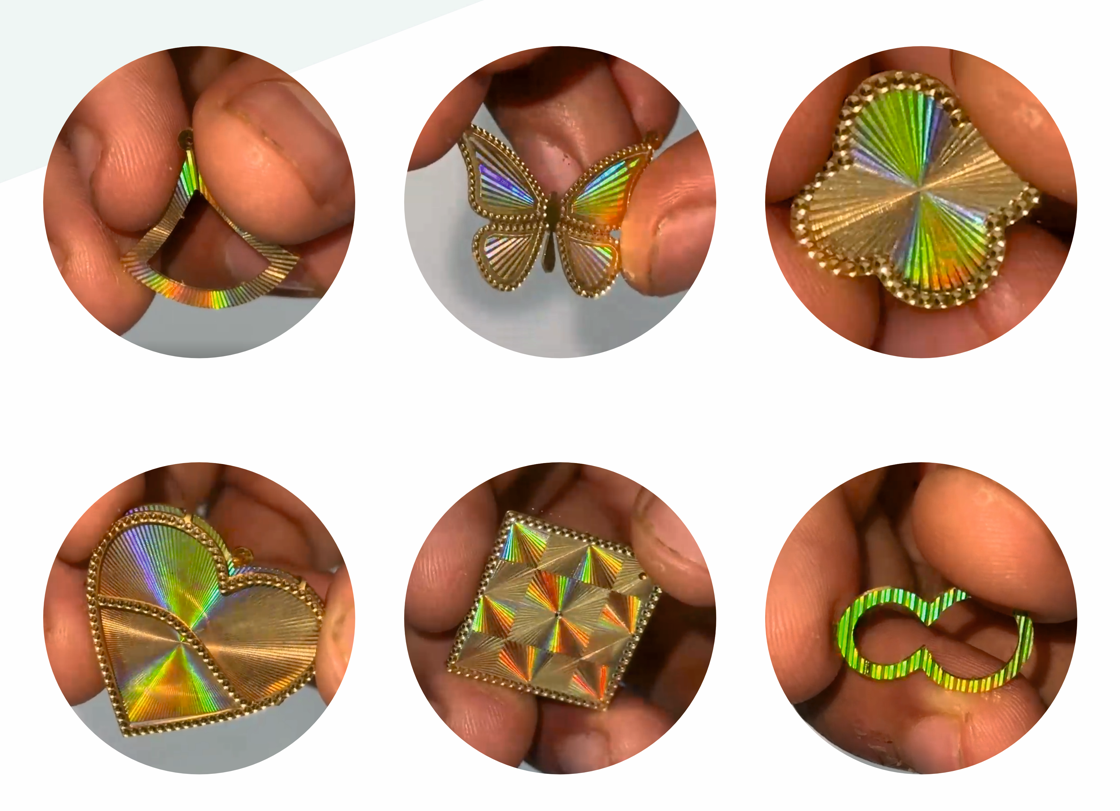

| Type of Jobs |
- Any Flat Plate
- Pendant Cutting
- Jali Cutting
|
| Sheet Dimension |
|
| Operating |
Laptop Or Industrial PC |
| Designing software |
Corel, AutoCAD, Art Cam (*.plt Format) |
| Milling Speed |
- Vertical – 60000 rpm (max)
- Horizontal – 12000 rpm (max)
|
| Milling Spindle Motor |
- Vertical – 1.8 kw
- Horizontal – 400 w
|
| Dimension With Cabinet |
L x W x H = 34 x 46 x 70 (inches) |
| Machine Weight |
650 kg |
